Multilogger - Low Cost Thermometer with 4 Thermocouple Inputs

Multilogger - Low Cost Thermometer with 4 Thermocouple Inputs
Multilogger - Low Cost Thermometer with 4 Thermocouple Inputs
Multilogger - Low Cost Thermometer with 4 Thermocouple Inputs
Multilogger - Low Cost Thermometer with 4 Thermocouple Inputs

M1200E is a battery operated datalogger that allows to monitor the actual measured values on the device display or to work with historical data in Comet Vision, where you can create table charts, PDF export, MS EXCEL.
The device is designed for measuring and recording with 4 inputs for thermocouples K, J, S, B, T, N.
Included is traceable calibration certificate in accordance with EN ISO/IEC17025.

M1200E is a battery operated datalogger that allows to monitor the actual measured values on the device display or to work with historical data in COMET Vision, where you can create table charts, PDF export, MS EXCEL. The device is designed for measuring and recording with 4 inputs for thermocouples K, J, S, B, T, N. Included is traceable calibration certificate in accordance with EN ISO/IEC17025.



  • code
    M1200E
  • Warranty
    3 years
  • In stock
    4 pcs
  • 441.00 EUR
Add to quote

Technical data

Measured value

Temperature

TEMPERATURE SENSOR - thermocouple K, N

Measuring range -200 to +1300 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple J

Measuring range -200 to +750 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple S

Measuring range 0 to +1700 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple B

Measuring range 100 to +1800 °C
Accuracy ± 0,3 % from the measured value + 1 °C in the range +300 to +1800 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple T

Measuring range -200 to +400 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C
DC VOLTAGE
Measuring range -60 to +140 mV; -18 to +18 mV
Accuracy ±100 µV; ±20 µV
Resolution 0,1 µV

GENERAL TECHNICAL DATA

Operating temperature -10 to +60 °C
Channels 4x external temperature probe
Memory 1 000 000 values (noncyclic record), 600 000 values (cyclic record)
Recording interval 1s to 24 hours
Display and alarm refresh each 10 s
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Available temperature units degrees Celsius, degrees Fahrenheit
Communication interface USB
Power 3x AA alkaline battery 1.5 V
Battery life 3 - 4 weeks
Protection class IP20
Dimensions (without connectors) 178 x 95 x 37mm, without attached cables
Weight (including batteries) approx. 380 g
Warranty 3 years

Features

Up to 4 physical Thermocouple Inputs

Multilogger M1200 inputs
  • Themocouple probe K, J, S, B, T, N
  • Direct input of bipolar voltages with range up to -60 to +140 mV
  • Sensors with woltage output (range -60 to +140mV; accuracy ±100 µV or -18 to +18mV; accuracy ±20 µV)

Evaluation of up to 16 variables

Multilogger - LCD detail
Up to 16 variables may be calculated from the four connected probes / sensors. This is the sum of the measured and calculated values. The calculated values can be the result of inter-channel conversions, e.g. the difference of two connected temperature probes. Multilogger LCD display detail.

The measured values are stored in the internal non-volatile memory. Memory capacity is up to 1 million values. Logging mode can be adjusted as non-cyclic, when logging stops after filling the memory, or cyclic, when after fulfilling the memory oldest stored values are overwritten by new ones.

Measured values are displayed on the screen with backlight option and the ability to change the size of display digits

Power supply

Multilogger - Power Supply
Multilogger - Power Supply

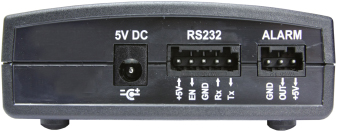

Multilogger can be powered by AC adapter or by rechargeable batteries with charging capability. Batteries are always a part of the device (you can also use standard alkaline AA batteries). Batteries power the device for several months.

While using the AC adapter, the batteries provide backup operations and provide recording and measurement during power failure.

Alarm limits and alarm indication

Multilogger - Alarm limits

It is possible to set two independent alarm limits for each channel (i.e. measured or calculated value).

Alarm signalization can be acoustic (built-in beeper), visual (LEDs, LCD)

Communication interfaces

Multilogger - M1200E

Multilogger is always equipped with USB connector for communication, data analysis and also for charging of the rechargeable batteries.

Optional accessories and download

Thermocouple "K" surface probe, CP500

Thermocouple "K" surface probe, CP500

Temperature range: -65 to 500°C
code CP500
Price EUR 72.00 EUR
In stock 6 pcs
Thermocouple "K" stick-in probe, CZ550

Thermocouple "K" stick-in probe, CZ550

Temperature range: -65 to 550°C
code CZ550
Price EUR 78.00 EUR
In stock 9 pcs
Thermocouple "K" stick-in probe, CZ900

Thermocouple "K" stick-in probe, CZ900

Temperature range: -65 to 1000°C
code CZ900
Price EUR 77.00 EUR
In stock 8 pcs
Thermocouple "K" wire probe, GD1250, with connector

Thermocouple "K" wire probe, GD1250, with connector

Temperature range: -65 to 980°C
code GD1250-1
Price EUR 36.00 EUR
In stock on request
Thermocouple "K" wire probe, GD1250, with connector, 2 meters

Thermocouple "K" wire probe, GD1250, with connector, 2 meters

Temperature range: -65 to 980°C
code GD1250-2
Price EUR 64.00 EUR
In stock on request
Thermocouple "K" wire probe, GD1250, with connector, 3 meters

Thermocouple "K" wire probe, GD1250, with connector, 3 meters

Temperature range: -65 to 980°C
code GD1250-3
Price EUR 91.00 EUR
In stock on request
Thermocouple "K" wire probe, GD1250, with connector, 4 meters

Thermocouple "K" wire probe, GD1250, with connector, 4 meters

Temperature range: -65 to 980°C
code GD1250-4
Price EUR 120.00 EUR
In stock on request
Thermocouple "K" wire probe, GD260, with connector

Thermocouple "K" wire probe, GD260, with connector

Temperature range: -65 to 260°C
code GD260-1
Price EUR 20.00 EUR
In stock 1 pcs
Thermocouple "K" wire probe, GD260, with connector, 2 meters

Thermocouple "K" wire probe, GD260, with connector, 2 meters

Temperature range: -65 to 260°C
code GD260-2
Price EUR 34.00 EUR
In stock on request
Thermocouple "K" wire probe, GD260, with connector, 3 meters

Thermocouple "K" wire probe, GD260, with connector, 3 meters

Temperature range: -65 to 260°C
code GD260-3
Price EUR 47.00 EUR
In stock on request
Thermocouple "K" wire probe, GD260, with connector, 4 meters

Thermocouple "K" wire probe, GD260, with connector, 4 meters

Temperature range: -65 to 260°C
code GD260-4
Price EUR 61.00 EUR
In stock on request
Thermocouple "K" wire probe, GD700, with connector

Thermocouple "K" wire probe, GD700, with connector

Temperature range: -65 to 700°C
code GD700-1
Price EUR 20.00 EUR
In stock on request
Thermocouple "K" wire probe, GD700, with connector, 2 meters

Thermocouple "K" wire probe, GD700, with connector, 2 meters

Temperature range: -65 to 700°C
code GD700-2
Price EUR 34.00 EUR
In stock on request
Thermocouple "K" wire probe, GD700, with connector, 3 meters

Thermocouple "K" wire probe, GD700, with connector, 3 meters

Temperature range: -65 to 700°C
code GD700-3
Price EUR 47.00 EUR
In stock on request
Thermocouple "K" wire probe, GD700, with connector, 4 meters

Thermocouple "K" wire probe, GD700, with connector, 4 meters

Temperature range: -65 to 700°C
code GD700-4
Price EUR 61.00 EUR
In stock on request
Thermocouple "K" insertion probe, GT1150

Thermocouple "K" insertion probe, GT1150

Temperature range: -50 to 1150°C
code GT1150
Price EUR 99.00 EUR
In stock 3 pcs

Extension cable thermocouple "K"

Extension cable thermocouple "K"

code SNP03
Price EUR 20.00 EUR
In stock on request
Extension cable thermocouple "K" female connector

Extension cable thermocouple "K" female connector

code SNP03/0
Price EUR 15.00 EUR
In stock on request
Extension cable thermocouple "K", 2 meters

Extension cable thermocouple "K", 2 meters

code SNP06
Price EUR 29.00 EUR
In stock on request
Extension cable thermocouple "K" female connector, 2 meters

Extension cable thermocouple "K" female connector, 2 meters

code SNP06/0
Price EUR 24.00 EUR
In stock on request
Extension cable thermocouple "K", 3 meters

Extension cable thermocouple "K", 3 meters

code SNP07
Price EUR 38.00 EUR
In stock on request
Extension cable thermocouple "K" female connector, 3 meters

Extension cable thermocouple "K" female connector, 3 meters

code SNP07/0
Price EUR 32.00 EUR
In stock on request
Extension cable thermocouple "K", 4 meters

Extension cable thermocouple "K", 4 meters

code SNP08
Price EUR 46.00 EUR
In stock on request
Extension cable thermocouple "K" female connector, 4 meters

Extension cable thermocouple "K" female connector, 4 meters

code SNP08/0
Price EUR 41.00 EUR
In stock on request
Extension cable thermocouple "K", 5 meters

Extension cable thermocouple "K", 5 meters

code SNP09
Price EUR 55.00 EUR
In stock on request
Extension cable thermocouple "K" female connector, 5 meters

Extension cable thermocouple "K" female connector, 5 meters

code SNP09/0
Price EUR 49.00 EUR
In stock on request
Extension cable thermocouple "K", 6 meters

Extension cable thermocouple "K", 6 meters

code SNP10
Price EUR 64.00 EUR
In stock on request
Extension cable thermocouple "K" female connector, 6 meters

Extension cable thermocouple "K" female connector, 6 meters

code SNP10/0
Price EUR 59.00 EUR
In stock on request
Extension cable thermocouple "K", 7 meters

Extension cable thermocouple "K", 7 meters

code SNP11
Price EUR 73.00 EUR
In stock on request
Extension cable thermocouple "K" female connector, 7 meters

Extension cable thermocouple "K" female connector, 7 meters

code SNP11/0
Price EUR 67.00 EUR
In stock on request
Extension cable thermocouple "K", 8 meters

Extension cable thermocouple "K", 8 meters

code SNP12
Price EUR 81.00 EUR
In stock on request
Extension cable thermocouple "K" female connector, 8 meters

Extension cable thermocouple "K" female connector, 8 meters

code SNP12/0
Price EUR 75.00 EUR
In stock on request
Extension cable thermocouple "K", 9 meters

Extension cable thermocouple "K", 9 meters

code SNP13
Price EUR 89.00 EUR
In stock on request
Extension cable thermocouple "K" female connector, 9 meters

Extension cable thermocouple "K" female connector, 9 meters

code SNP13/0
Price EUR 84.00 EUR
In stock on request
Extension cable thermocouple "K", 10 meters

Extension cable thermocouple "K", 10 meters

code SNP14
Price EUR 98.00 EUR
In stock on request
Extension cable thermocouple "K" female connector, 10 meters

Extension cable thermocouple "K" female connector, 10 meters

code SNP14/0
Price EUR 93.00 EUR
In stock on request
Extension cable thermocouple "K", 11 meters

Extension cable thermocouple "K", 11 meters

code SNP15
Price EUR On request
In stock on request
Extension cable thermocouple "K" female connector, 11 meters

Extension cable thermocouple "K" female connector, 11 meters

code SNP15/0
Price EUR 102.00 EUR
In stock on request
Extension cable thermocouple "K", 12 meters

Extension cable thermocouple "K", 12 meters

code SNP16
Price EUR On request
In stock on request
Extension cable thermocouple "K" female connector, 12 meters

Extension cable thermocouple "K" female connector, 12 meters

code SNP16/0
Price EUR 110.00 EUR
In stock on request
Extension cable thermocouple "K", 13 meters

Extension cable thermocouple "K", 13 meters

code SNP17
Price EUR On request
In stock on request
Extension cable thermocouple "K" female connector, 13 meters

Extension cable thermocouple "K" female connector, 13 meters

code SNP17/0
Price EUR 119.00 EUR
In stock on request
Extension cable thermocouple "K", 14 meters

Extension cable thermocouple "K", 14 meters

code SNP18
Price EUR On request
In stock on request
Extension cable thermocouple "K" female connector, 14 meters

Extension cable thermocouple "K" female connector, 14 meters

code SNP18/0
Price EUR 127.00 EUR
In stock on request
Extension cable thermocouple "K", 15 meters

Extension cable thermocouple "K", 15 meters

code SNP19
Price EUR 141.00 EUR
In stock on request
Extension cable thermocouple "K" female connector, 15 meters

Extension cable thermocouple "K" female connector, 15 meters

code SNP19/0
Price EUR 136.00 EUR
In stock on request

AC/DC adapter 230Vac to 5Vdc/2.1A, EU

AC/DC adapter 230Vac to 5Vdc/2.1A, EU

code A1825eu
Price EUR 12.00 EUR
In stock 85 pcs
AC/DC adapter 230Vac to 5Vdc/2.1A, UK

AC/DC adapter 230Vac to 5Vdc/2.1A, UK

code A1825uk
Price EUR 12.00 EUR
In stock on request
AC/DC adapter 230Vac to 5Vdc/2.1A, US

AC/DC adapter 230Vac to 5Vdc/2.1A, US

code A1825us
Price EUR 12.00 EUR
In stock 8 pcs

Accredited temperature calibration

Accredited temperature calibration

code SLU001
Price EUR 39.00 EUR
In stock on request

Wall holder for the Multilogger

Wall holder for the Multilogger

code MLP002
Price EUR 29.00 EUR
In stock on request
Holder for mounting the Multilogger on magnetic surfaces

Holder for mounting the Multilogger on magnetic surfaces

code MLP003
Price EUR 7.00 EUR
In stock 3 pcs

COMET Database

COMET Database

code CDB
Price EUR 450.00 EUR
In stock yes
COMET VISION - Analytical Software for Dataloggers and Multiloggers

COMET VISION - Analytical Software for Dataloggers and Multiloggers

code CV
Price EUR FREE
In stock yes

External audio unit for MSxx and Multilogger

External audio unit for MSxx and Multilogger

code MP026
Price EUR 25.00 EUR
In stock 3 pcs

COMET presentation case for samples

COMET presentation case for samples

code BM512
Price EUR 300.00 EUR
In stock on request
COMET Magnetic Foldable Stand

COMET Magnetic Foldable Stand

code PPO001
Price EUR 420.00 EUR
In stock on request

Software

download-icon Comet Vision Software (2.3.8935.24346 dbapi 21.1)
16.56 MB
download-icon Comet Database One Click Installer (21.1-V)
487.31 MB
download-icon Database Viewer 3.20.0.0 dbapi 21.1
24.33 MB
download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
0 bytes
download-icon Quick Start Manual
1,009.40 KB
download-icon Declaration of Conformity
0 bytes

Catalogs

download-icon Catalogue Sheets - COMET Multiloggers
1.13 MB

Related products

Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port

Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port

code M1200
Price EUR 765.00 EUR
In stock on request
Sixteen Channel Data Logger with Alarms

Sixteen Channel Data Logger with Alarms

code MS6D
Price EUR 1 215.00 EUR
In stock 14 pcs
Ethernet Multilogger - thermo hygro meter with 4 MiniDIN inputs

Ethernet Multilogger - thermo hygro meter with 4 MiniDIN inputs

code M1140
Price EUR 765.00 EUR
In stock 4 pcs
Multilogger - thermo hygro meter with 2 MiniDIN and 2 Thermocouple inputs

Multilogger - thermo hygro meter with 2 MiniDIN and 2 Thermocouple inputs

code M1220
Price EUR 765.00 EUR
In stock on request
Multilogger - universal 4 channel thermometer hygrometer with 2 MiniDIN and 2 Terminals

Multilogger - universal 4 channel thermometer hygrometer with 2 MiniDIN and 2 Terminals

code M1320
Price EUR 765.00 EUR
In stock 1 pcs
Multilogger - thermo-hygro-barometer with 2 MiniDIN and 2 Terminals

Multilogger - thermo-hygro-barometer with 2 MiniDIN and 2 Terminals

code M1321
Price EUR 827.00 EUR
In stock on request
Ethernet Multilogger - thermo-hygro-CO2 meter with 2 MiniDIN and 2 Terminals

Ethernet Multilogger - thermo-hygro-CO2 meter with 2 MiniDIN and 2 Terminals

code M1322
Price EUR 895.00 EUR
In stock on request
Multilogger - thermo-hygro-CO2-barometer with 2 MiniDIN and 2 Terminals

Multilogger - thermo-hygro-CO2-barometer with 2 MiniDIN and 2 Terminals

code M1323
Price EUR 962.00 EUR
In stock on request
Ethernet Multilogger - universal datalogger with 4 inputs

Ethernet Multilogger - universal datalogger with 4 inputs

code M1300
Price EUR 765.00 EUR
In stock on request

We produce

Leading manufacturer of temperature, humidity, atmospheric pressure, carbon dioxide CO2 transmitters, data loggers, monitoring systems, data acquisiton systems, thermometers, hygrometers, barometers. Production includes data acquisition systems, humidity, temperature, CO2 transmitters and portable thermometers, hygrometers, barometers, CO2 meters. Instruments are designed for accurate measurement and for monitoring environmental conditions.

All instruments come with included traceable calibration certificate with declared metrological traceability of etalons based on requirements of EN ISO/IEC 17025 standard.





ISO logo CQS logo EZC logo
© Copyright 2025 COMET SYSTEM, s.r.o. | Webdesign by Spaneco
