Low-Cost Sensor for Up to Four Digital Probes, Ethernet Output and PoE

Low-Cost Sensor for Up to Four Digital Probes, Ethernet Output and PoE
Low-Cost Sensor for Up to Four Digital Probes, Ethernet Output and PoE
Low-Cost Sensor for Up to Four Digital Probes, Ethernet Output and PoE
Low-Cost Sensor for Up to Four Digital Probes, Ethernet Output and PoE

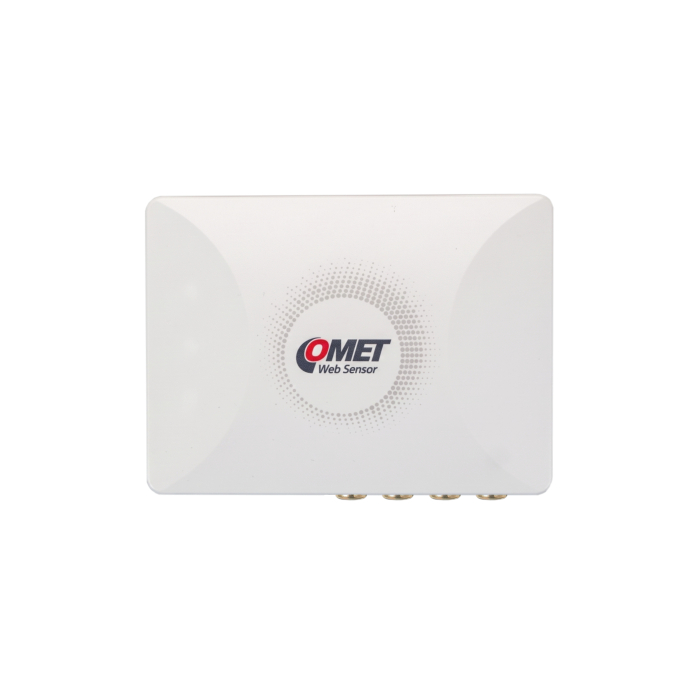

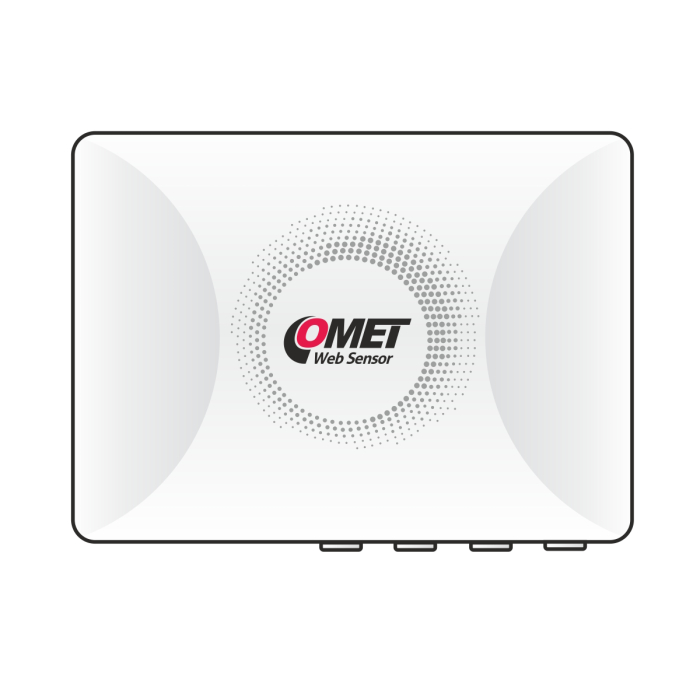

The Web Sensor PA8641 is a universal Ethernet sensor designed to connect up to four digital temperature probes or combined temperature and humidity probes.

The device uses an independent bus for each channel, allowing a probe cable length of up to 40 m for each input separately. This allows individual probes to be placed more flexibly and at greater distances.

The device is suitable for monitoring multiple points in a single location, such as server rooms, technical rooms, or warehouses. Like other models, it offers a modern web interface, top-tier security including the option to upload custom certificates for HTTPS and TLS communication, and PoE support.

The device supports automatic detection and replacement of the same type of probes, simplifying maintenance and calibration.

Main Benefits:

  • Support for external digital temperature and humidity probes on a cable
  • Allows probe connection up to 30 meters in length
  • Power supply 5–24 V or PoE (IEEE 802.3af)
  • Integrated backup memory
  • Modern web interface, IPv4/IPv6 support, Modbus TCP, COMET Cloud, and fully encrypted communication (HTTPS, SNMPv3, TLS)
  • Integrated detachable bracket for easy installation

  • code
    PA8641
  • Warranty
    3 years
  • In stock
    on request
  • 234.00 EUR
Add to quote

Technical data

Measured value

Temperature
Relative humidity

TEMPERATURE SENSOR

Measuring range Depending on the connected DSxx probe
Accuracy Depending on the connected DSxx probe
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range Depending on the connected DSxx probe
Accuracy Depending on the connected DSxx probe
Resolution 0.1% RH

GENERAL TECHNICAL DATA

Operating temperature range -30 to +60 °C
Measurement channels 4× external temperature probe or 1× combined T+RH probe (cable-mounted), CINCH connector
Maximum probe cable length per channel 30 meters
Supported temperature units degrees Celsius (°C), degrees Fahrenheit (°F)
Power supply Power over Ethernet (IEEE 802.3af) or 5–24 V DC
Network interface Ethernet
IP support IPv4, IPv6
Communication protocols HTTP(s), Web server (WWW), HTTP GET (JSON, XML), Modbus TCP, SNMPv1, SNMPv2c, SNMPv3
Alarm protocols Email (SMTP), Syslog
Measurement interval 2 s
Ingress protection (IP rating) IP30
Dimensions 116 × 85 × 42 mm (without connected probe)
Weight 180 g
Warranty 3 roky

Cost-effective Ethernet Sensors without Display

The PAx6xx series is designed as a low-cost solution for applications where a local display or signaling is not required.

Ideal solution for:

  • server rooms
  • warehouses
  • IT racks
  • OEM projects
  • centrally managed systems

Why choose PAx6xx?

Cost-effective solution
Optimized for projects where the priority is:

  • reliability
  • network communication
  • remote monitoring
  • low acquisition costs

Full-featured network equipment
The same platform as TAx6xx means:

  • HTTPS
  • SNMP v1/v2c/v3
  • Modbus TCP
  • HTTP GET (JSON / XML)
  • HTTP POST (JSON)
  • SMTP (TLS)
  • IPv4 + IPv6
  • COMET Cloud
  • Syslog
  • Firmware update via web

✔ Modern security

  • Custom certificate upload
  • 4 user accounts
  • Encrypted communication
  • RTC with battery backup

✔ Flexible probe connection

  • Digital temperature probes (DST)
  • Digital T+RH probes (DSRH)
  • Independent bus for multi-input models
  • Up to 40 m cable length for each probe

Technical parameters (common)

  • Power supply 5–24 V (PA8652: 15–24 V)
  • PoE IEEE 802.3af
  • Backed-up memory
  • Modern compact design
  • Removable bracket
  • Operating range −30 to +60 °C

Typical applications

Server rooms

  • Discrete installation without a display.

Warehouses

  • Monitoring of multiple points using PA8641.

Technical rooms

  • Temperature + flooding + door status (PA8652).

Buildings with central monitoring

  • Integration into BMS via Modbus TCP or SNMP.
