Compressed air temperature and humidity regulator with 230Vac/8A relays

Compressed air temperature and humidity regulator with 230Vac/8A relays
Compressed air temperature and humidity regulator with 230Vac/8A relays
Compressed air temperature and humidity regulator with 230Vac/8A relays
Compressed air temperature and humidity regulator with 230Vac/8A relays
Compressed air temperature and humidity regulator with 230Vac/8A relays
Compressed air temperature and humidity regulator with 230Vac/8A relays

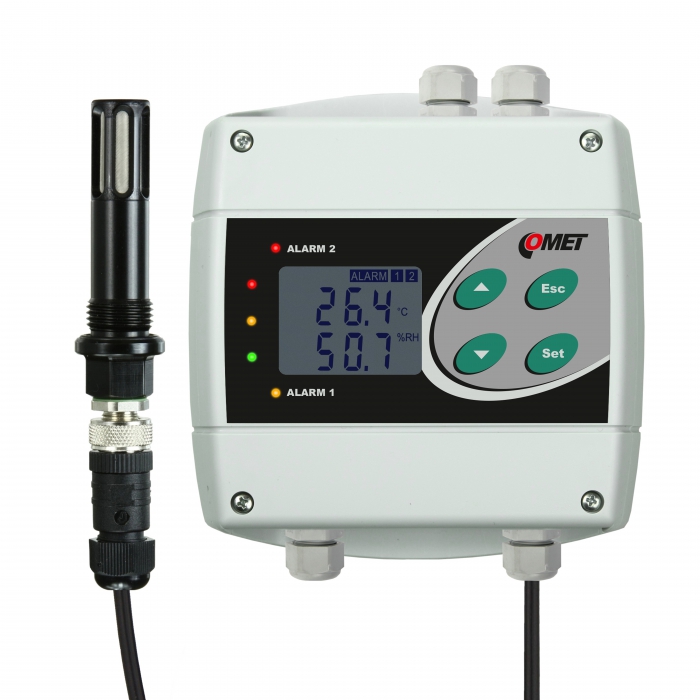

Humidistat, thermostat with two relay outputs. T+RH probe from hard anodized duralumin for compressed air up to 25 bars with 1 meter cable. Outdoor, indoor use.

Relative humidity, temperature probe on a cable. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.



  • code
    H3061P
  • Warranty
    3 years
  • In stock
    on request
  • 495.00 EUR
Add to quote

Product variants

Technical data

Measured value

Temperature
Relative humidity

TEMPERATURE SENSOR

Measuring range -30 to +105 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C

MEASURING THE MOISTURE OF COMPRESSED AIR

Measuring range up to 25 bars
Air flow velocity up to 25 m/s at a pressure of 1 bar (1m/s at a pressure of 25 bar)

RELAY OUTPUTS

Quantity 2
Maximal voltage 250 VAC
Maximal current 8 A
Maximal power 2000 VA AC, 192 W DC

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C
Channels 1x connectable temperature+humidity probe
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Acoustic alarm from built-in beeper - switchable
Power 110-240 VAC
Protection class IP65 electronics; IP40 sensors

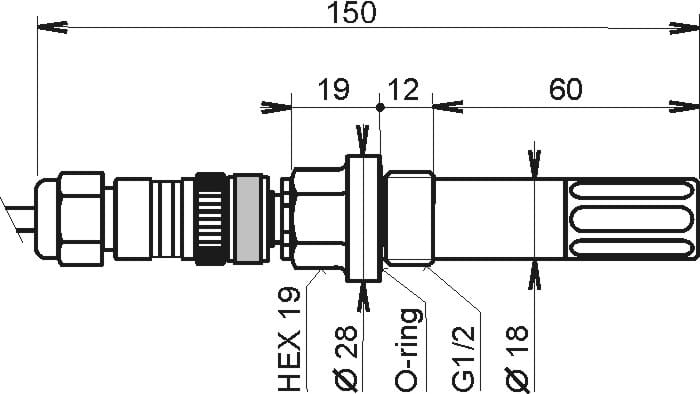

Dimensions 136 x 161 x 45 mm; length/diameter of external probe 88/18 mm
External probe cable length 1 meter
Weight approx. 490 g
Warranty 3 years
