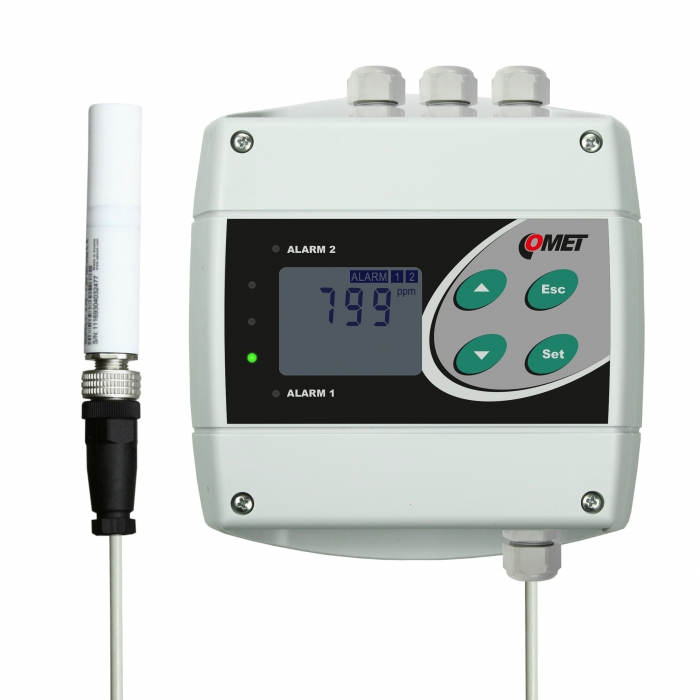

CO2 concentration transmitter with two relay outputs
CO2 level transmitter with two output relays.
The device is supplied with CO2 probe with 1m cable. Cable lengths 2 or 4 meters available optionally.
Green LED shines - CO2 concentration 0 to 1000 ppm
Yellow LED shines - CO2 concentration 1001 to 1200 ppm
Red LED shines - CO2 concentration 1201 ppm and more
-
codeH5021
-
Warranty3 years
-
In stock1 pcs
- 769.00 EUR
Technical data
Measured value
CO2
CO2 SENSOR
Measuring range
0 to 10 000 ppm
Accuracy
±(100ppm +5% from reading) at 25°C and 1013hPa
Resolution
1 ppm
RELAY OUTPUTS
Quantity
2
Maximal voltage
50 V
Maximal current
2 A
Maximal power
60 VA
GENERAL TECHNICAL DATA
Operating temperature
-30 to +60 °C
Channels
1x external CO2 sensor
Acoustic alarm
from built-in beeper - switchable
Power
9-30 Vdc
Protection class
IP65
Dimensions
136 x 150 x 45 mm
External probe cable length CO2
1 meter (optionally 2 or 4 meters)
Weight
approx. 360 g
Warranty
3 years
Optional accessories and download
Ac/dc adapter 12V/450mA stabilized, EU
code
A1510eu
Price EUR
12.00 EUR
In stock
106 pcs
Ac/dc adapter 12V/450mA stabilized, UK
code
A1510uk
Price EUR
12.00 EUR
In stock
on request
Ac/dc adapter 12V/450mA stabilized, US
code
A1510us
Price EUR
12.00 EUR
In stock
on request
Accredited CO2 calibration
code
SLU015
Price EUR
269.00 EUR
In stock
on request
cable for transmitter adjustment via USB port
code
SP003
Price EUR
32.00 EUR
In stock
15 pcs
Holder for mounting the COMET Transmitter on magnetic surfaces
code
SP103
Price EUR
20.00 EUR
In stock
17 pcs
Tool for easy connection to WAGO terminals 233 for serial output transmitters
code
SP006
Price EUR
3.00 EUR
In stock
19 pcs
COMET presentation case for samples
code
BM512
Price EUR
300.00 EUR
In stock
on request
COMET Magnetic Foldable Stand
code
PPO001
Price EUR
420.00 EUR
In stock
on request
Software
TSensor (3-5-8-0)
Sensor Reader (2-0-8-0)
Conversions - application for recalculation of values
Others
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Declaration of Conformity
Catalogs
CATALOG - CO2
CATALOG - Digital sensors and regulators with serial RS485/RS232 output
Catalogue Sheets - COMET Regulators
